Measure Temperature and Humidity with Arduino

Learn how to measure temperature and humidity in your Arduino projects using DHT11 or DHT22 sensors.

What is a DHT11 / DHT22?

The DHT11 and DHT22 are sensors that allow for simultaneous measurement of temperature and humidity. While the DHT11 is more affordable, the DHT22 offers better accuracy and a wider range of measurements.

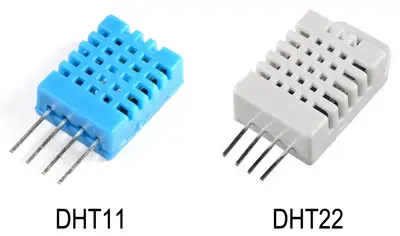

DHT11 and DHT22 Sensors

Comparison

Feature DHT11 DHT22
Temperature Range 0 to 50°C -40 to 125°C
Temperature Accuracy ±2°C ±0.5°C
Humidity Range 20 to 80% 0 to 100%
Humidity Accuracy ±5% ±2-5%

Assembly Diagram

Connect the sensor as follows:

Assembly Diagram

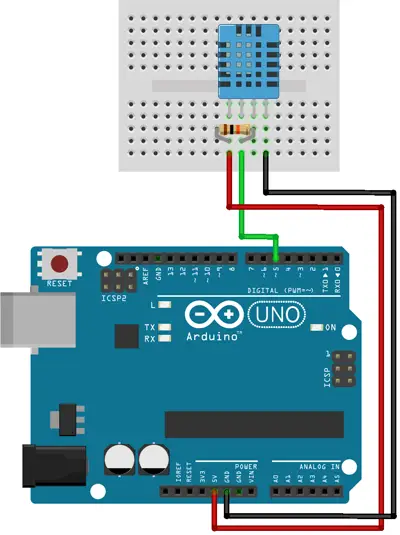

Breadboard Setup

Code Example

The following code uses the Adafruit DHT library to read and display temperature and humidity data:


#include "DHT.h"

// Uncomment the sensor model you're using
//#define DHTTYPE DHT11
#define DHTTYPE DHT22

const int DHTPin = 5;  // Sensor connected to digital pin 5

DHT dht(DHTPin, DHTTYPE);

void setup() {
  Serial.begin(9600);
  Serial.println("DHTxx Test!");
  dht.begin();
}

void loop() {
  delay(2000);  // Wait 2 seconds between measurements
  float h = dht.readHumidity();
  float t = dht.readTemperature();

  if (isnan(h) || isnan(t)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  Serial.print("Humidity: ");
  Serial.print(h);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.println(" *C");
}
